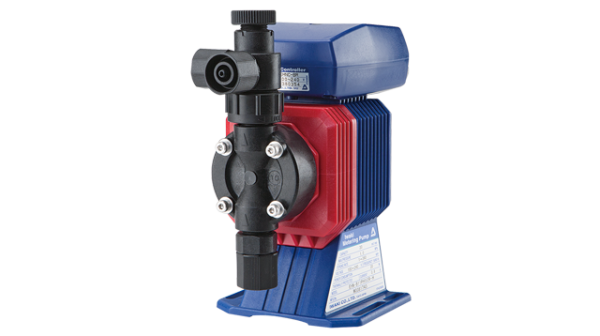

The latest electromagnetic metering pump equipped with digital controller & multi-voltage
Features
- Multi-voltage power source. Multi-voltage power source from AC100 to 240V for all models. You are now free from worrying about power voltage.
- High resolution. Thank to digitized controller, stroke speed can be adjusted by 1 spm step from 1 – 360 spm. Combined with stroke length adjustment, you can do the fine adjustment from very small flow to maximum flow rate.
- Pump head variation. Wide variety of standard pump head (VC/VH), automatic bleeding type (NAE) and high compression type (55 model)
- Water/dust-proof. Each unit such as driving unit and control unit is sealed to make the pump IP66 equivalent water/dust-proof.
Note : Do not install pump outdoor. - Air vent valve. Small flow capacity models (EHN-10, 15 & 20) equip air vent valve. Air in the pump chamber can be easily released by turning knob.
Specifications
| Max. discharge capacity range | 38 – 450 mL/min |
|---|---|
| Max. discharge pressure | 0.2 – 1.0 MPa |
| Main materials | PVC, GFRPP, PVDF, SUS316 |
| Stroke rate | 1 – 360 spm |
| Power supply | AC 100 – 240 V, single phase, 50/60 Hz |
| Liquid temperature range | PVC type: 0 – 40˚C GFRPP type, PVDF type, SUS316 type: 0 – 60˚C |
| Viscous liquid | Please contact us for details. |
| Slurry liquid | Can not be handled. |
