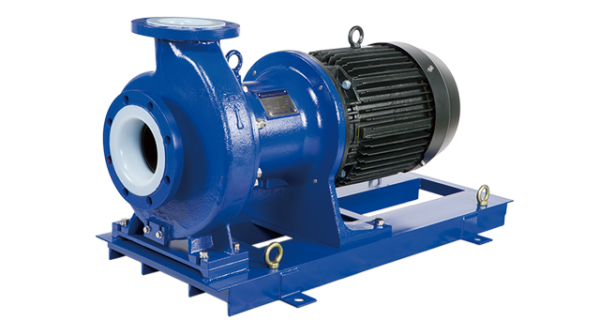

The most reliable, large-sized magnetic drive pump designed for process use
Features of MDE series
- High levels of durability and reliability. Manufactured to heavy-duty specifications for process use, these magnetic drive pumps can endure continuous operation over a long time under demanding conditions. The main structural materials of the pump are reinforced with metal to improve mechanical strength.
- Strong corrosion and heat resistance. These pumps are manufactured mainly from fluororesin and SiC. Three standard types of fluororesins are used: ETFE and PFA. Especially, the PFA type allows high-temperature liquids (up to 120˚C) to be handled. EL-grade chemicals can also be handled.
- Useful even in petrochemical plants. The casing cover of these pumps is constructed with FCD (ductile cast iron). Therefore, these pumps can be used in petrochemical plants where conventional resin-constructed pumps could not be used.
Specifications (50/60Hz)
| Max. discharge capacity range | 1500 – 4000 / 1500 – 4000 L/min |
|---|---|
| Max. head range | 25 – 57 / 38 – 82 m |
| Main materials | CFRETFE, PFA |
| Required power range | 11 – 37 kW |
| Discharge bore | 50 mm, 65 mm, 125 mm |
| Liquid temperature range | 0 – 100˚C |
| Sealing method | Seal-less construction |
