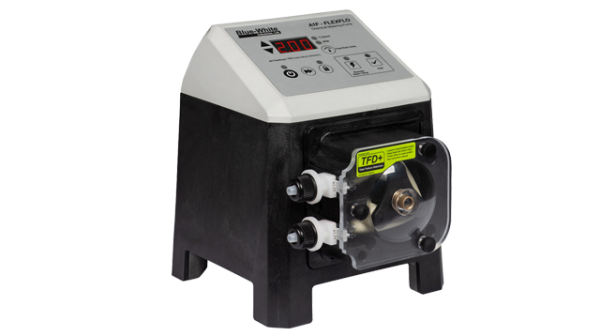

FLEXFLO® A1F PERISTALTIC METERING PUMP

Mô tả

Overview

Standardize on one chemical feed solution with the FLEXFLO® A1F Peristaltic Chemical Metering Pump. The A1F never loses prime, requires minimal maintenance, and has a high energy efficient rating. This self priming chemical metering pump delivers smooth chemical feed, and does not require check valves.

Benefits of a Peristaltic Pump:

• Peristaltic pump design does not have valves that can clog requiring maintenance.
• Self priming – even against maximum line pressure. By-pass valves are not required.
• Cannot vapor lock or lose prime.

Capabilities:

• Output rates to: .001 – 5.6 GPH (.004 – 21.2 LPH) and pressures to 100 PSI (6.89 Bar).

Communication & Interface:

• Remote Start/Stop: Non-powered dry contact closure for remote start/stop.
• Relay outputs include a single 250V / 3A and a single solid state.
• Compatible with Blue-White’s output Flow Verification Sensor (FVS) system.

Superior Engineered Design:

• 3 Year Warranty
• CNC precision machined squeeze rollers for optimum squeeze,
  unparalleled accuracy, and tube life.
• Heavy duty rotor – single piece plastic rotor means no flexing and increased accuracy with
  no metal springs or hinges to corrode.
• Energy efficient brushless DC motor.
• Specially engineered tubing for long life.

Safety Features:

• Tube Failure Detection (TFD) Senses tube rupture by detecting chemical in the pump head. No false triggering – Patented
• Lockout feature prevents any unwanted tampering – Patent pending
• Display shield to protect controls from harsh environments

What’s Included:

• A1F Multi-Diaphragm Metering Pump
• Two tube assemblies
• Suction tube – clear PVC – 5′ length (3/8″ OD, 1/4″ ID)
• Suction foot valve / strainer
• Suction ceramic weight
• Discharge tube – opaque polyethylene – 5′ length (3/8″ OD, 1/4″ ID)
• Discharge injection fitting with check valve
• Mounting hardware kit
• Display shield

Specification
