Overview

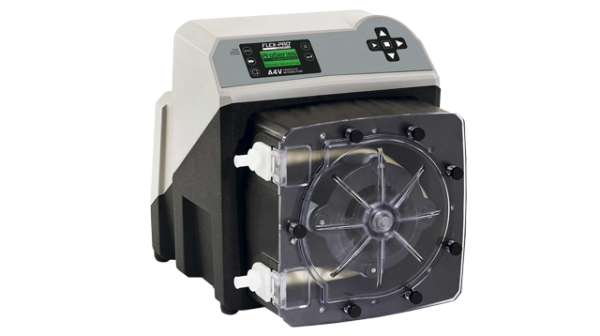

FLEX-PRO® A4 Series Peristaltic Pump for commercial and industrial applications.
- Output Range: .01 – 158 GPH (.04 – 600 LPH)
- Pressures to 125 PSI (8.6 bar)
- 4-20mA (A4V only), Pulse Input (A4V only) and Manual Speed Control
- 2500:1 Turndown ratio
- Variable Speed BLDC Motor
- NEMA 4X (IP 66) Washdown
- 2 Year Warranty
- Flex-A-Prene® Dual-Channel Tubing with more than 4X longer tube life compared to conventional single channel tubes.
- Avoid costly and dangerous chemical spills with Blue-White’s Patented Tube Failure Detection
- Quick Disconnect Fittings Available for Flex-A-Prene®
Specification
| Max. Working Pressure: | 125 psig (8.6 bar) Note: see individual pump tube assembly maximum pressure ratings. |
| Max. Fluid Temperature: | 3/8” OD x 1/4” ID tubing connections: 130°F (54°C) M/NPT connections: 185°F (85°C) Note: see individual pump tube assembly maximum temperature ratings. |
| Ambient Operating Temperature: | 14°F to 115°F (-10°C to 46°C) |
| Ambient Storage Temperature: | -40°F to 158°F (-40°C to 70°C) |
| Maximum Viscosity: | 12,000 Centipoise |
| Maximum Suction Lift: | 30 ft. Water at sea level (14.7 atm psi) |
| Operating Voltage: | 96 to 264VAC-50/60Hz, 350W |
| Power Cord Options: | 115V60Hz = NEMA 5/15 (USA) 230V60Hz = NEMA 6/15 (USA) 220V50Hz = CEE 7/VII (EU) 240V50Hz = AS 3112 (Australia/New Zealand) |
| Motor: | Brushless DC |
| Motor Speed Adjustment Range 2,500:1: | 0.04% – 100% motor speed |
| Motor Speed Adjustment Resolution: | 0.1% increments > 10% motor speed 0.01% increments > 1% motor speed and < 10% 0.001% increments < 1% motor speed |
| Display: | 3 color VGA backlit LCD, UV resistant |
| Display Resolution: | 0.1 > 10% motor speed 0.01 > 1% motor speed and < 10% 0.001 < 1% motor speed |
| Keypad: | Ten button positive action tactile switch keypad |
| Enclosure: | NEMA 4X (IP66), Polyester powder coated aluminum. |
| Security: | Programmable 4-digit password |
| Maximum Overall Dimensions: | 12-1/8”W x 14-1/4”H x 18-5/8”D (30.8W x 36.1H x 47.3D cm) |
| Approximate shipping wt: | 58 lb. (26.3 Kg) |
