OVERVIEW

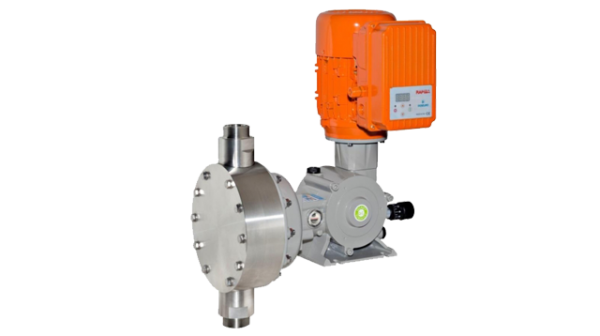

The latest new DOSEURO product for improving the already known high performance pumps.
Quickly and Easily is the RAPIDA’s motto, thanks to his LCD display, control board and different function that allow to change the pump setting immediately.
FUNCTION
- MANUAL: Flow rate adjustment with 4 digit display in a range 10%-100% (6-60Hz) of the pump capacity.
- ANALOGIC: Flow rate adjustment by incoming signal 4-20mA in a range 10%-100% (6-60Hz) of the pump capacity.
- BATCH: Pump can be programmable for operating only for a certain period.
- LEVEL CONTROL SETTING: Predisposed to be connected to level sensor
- DIAPHRAGM RUPTURE DETECTOR: In case of diaphragm fail pump will stop automatically giving an alarm. (Available for selected product – SD pump type).
- REMOTE ALARM: Relay exit to switch for any alarm
TECHNICAL INFORMATION
- Vector voltage control for variation in frequency to control a 3Ph motor.
- Power supply: 1Ph 230V(±10%) – 50/60Hz for 230V 3Ph motor
- Enclosure: IP55
- Ambient Temperature: -20 to +40°C
