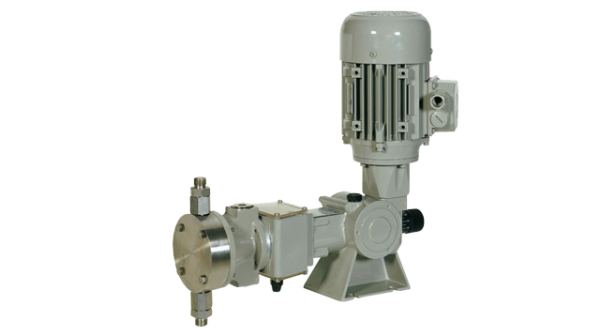

Spring Return Hydraulic Diaphragm Pump
Suitable in case that
- The dosed liquid contains small amounts of suspended solids
- The dosed liquid is a toxic solution
- A drip proof/air tight application is required
Every pump is fitted with a standard gearbox reduction system and with vertical mounted B14 shaped electric motor in accordance with the UNEL-MEC specifications.
The motor power range is from 0.18 Kw up to 0.75 Kw a the at European standard: 3 phase voltages of 230/400V @ 50/60Hz, 4 poles and 1 phase voltages of 230/50-60Hz or 110/60Hz.
As motors conform to UNEL-MEC specifications, there are many vailable alternative options, including different voltages, insulation classes and special explosion proof versions.
The reduction gearbox is of a standard endless screw plus worm-wheel type, supported by bearings, fully lubricated in an oil-bath.
The mechanism for the variation of the stroke length is a positive fore-stroke, spring return type, that is operated by an eccentric.
