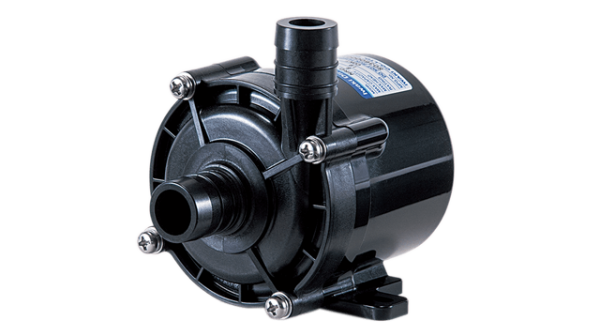

High performance canned pumps for a wide variety of uses
Features
- Seal-less design. The pumps are equipped with a small, lightweight canned motor encapsulated in resin. This construction requires less space than magnet pumps, while the seal-less design prevents liquid leakage.
- Readily compliant with international standards. The 50V or less supply voltage is classified as compliant with international standards such as UL, CSA, CE, and GS. The DC power supply does not have a region-specific voltage or frequency, allowing for unified usage.

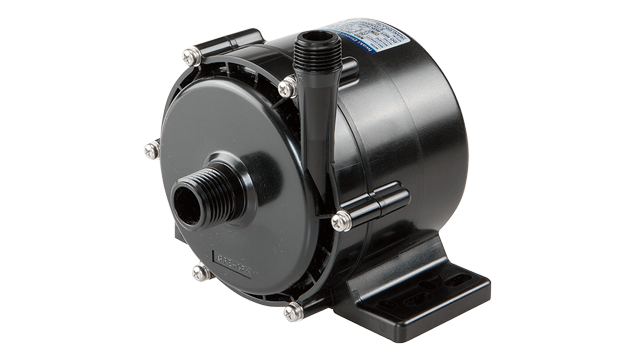

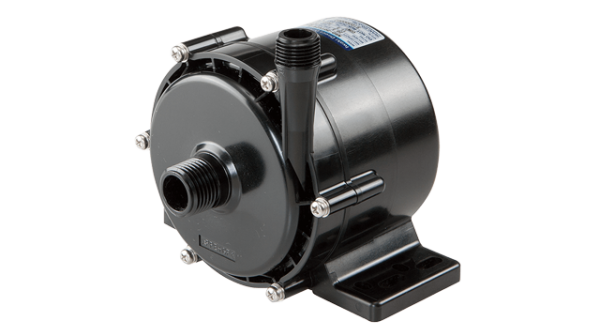

- Multiple connection types. There are three different port connection options available, Hose Barb, NPT Thread or R Thread. Select the option that best fits your location and installation.
- Flow adjustment feature and built-in drive technology. An external input signal (DC 1 to 5V) can be used to vary the flow rate. The NRD series models are also equipped with a built-in motor drive circuit. With this circuit, the power can be connected to variable external input to operate the pump.
- Long life. A Brushless DC motor is employed as the pump drive. This motor design eliminates pump/motor failures due to brush wear, ensuring a service life equal to AC motors.
- High temperature environments. The pump can be installed in an environment with an ambient temperature of up to 50°C. It can also pump fluids as warm as 80°C.
Typical applications
- Fuel cells:
Cogeneration systems (cooling and circulation) - Medical:
Biochemical analysis, Cooling systems, Patient temperature management medical equipment, Cooling for laser treatment - Physical/chemical analysis:
Thermostats, Pure water equipment, Different types of analyzers - Vending machines:
Dispensers - Photo:
Automatic film developing machines, X-ray film developing machines - Semiconductors:
Semiconductor cooling systems - Surface treatment:
Small plating machines - Solar power systems:
Electric water heaters, Solar battery heat collectors - Electric cars:
Radiators, Heaters
Specifications (50/60Hz)
| Model | NRD-05 | NRD-08 | NRD-20 | NRD-30 |
|---|---|---|---|---|
| Max. discharge capacity | 5.1 L/min | 7.9 Limin | 19.5 L/min | 23.5 L/min |
| Max. head | 4.1 m | 11.5 m | 8.5 m | 11 m |
| Connection sizes IN×OUT |
14mm×8mm R3/8×R1/8 NPT3/8×NPT1/8 |
21mm×17mmR1/2×R3/8 NPT1/2×NPT3/8 |
||
| Main materials | GFRPPE, GFRPP, Alumina ceramic | |||
| Liquid temp. range | 0 – 80˚C | |||
| Output | 6W | 22W | 28W | 45W |
| Power voltage | DC24V | |||
| Sealing method | Seal-less construction |
