Mô tả

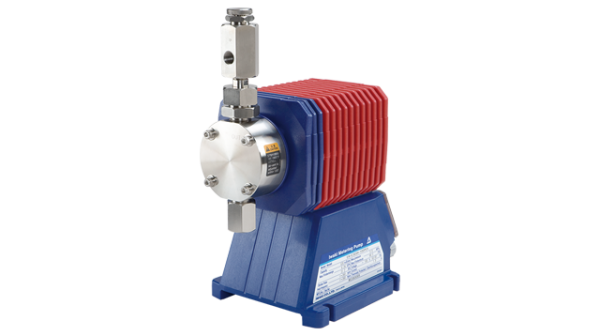

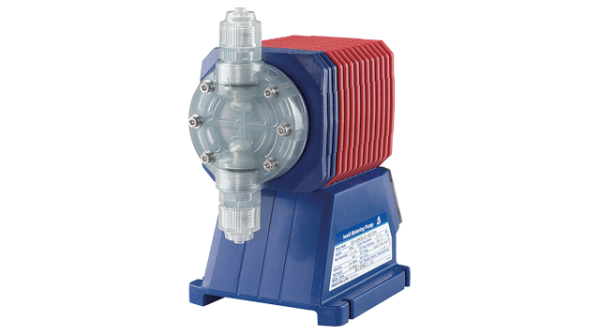

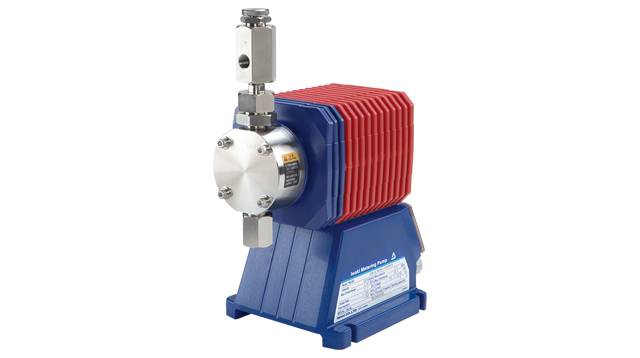

Model for high flow and industrial process
Features

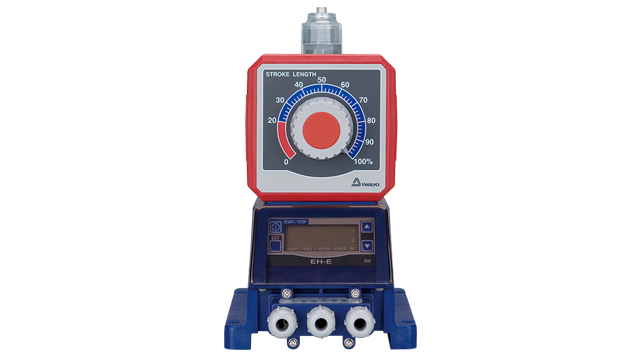

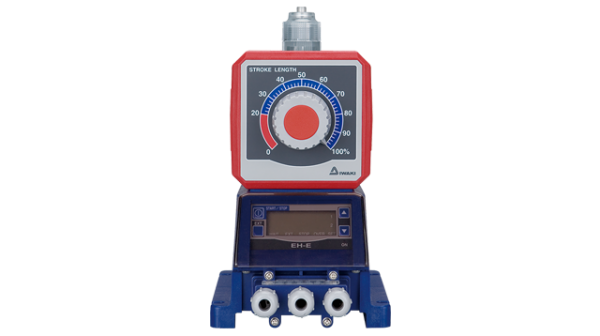

- High resolution. The discharge volume is adjusted in terms of stroke length and rate. The stroke length can be adjusted between 20% and 100%, and the stroke rate can be set between 0 and 360 spm, which enables the EH-E pump to provide a wide range of flow rates.
- Microcomputer built-in controller. The controller includes a microcomputer that enables a single pump to operate in four modes (manual / proportional control / pulse control / count control), switching between modes by means of the keys.
- Water- and dust-proof structure. The pump body, aluminium die-cast frame is molded by reinforced plastics (GFRPP), has a water- and dust-proof structure that is immune to liquids and atmosphere corrosion. The water-proof level is IP65.
- Chemical resistance features. Materials available for the pump head are PVC, GFRPP (Polypropylene), PVDF (Fluororesin), and SUS (Stainless steel). All other wetted-parts consist of corrosion-proof materials; Hastelloy C276, ceramic, fluoroelastomer, PTFE, etc.
Specifications
| Max. discharge capacity range | 340 – 1250 mL/min |
|---|---|
| Max. discharge pressure range | 0.2 – 1.0 MPa |
| Main materials | PVC, GFRPP, PVDF, SUS316 |
| Stroke rate | 1 – 360 spm |
| Power supply | AC100, 110, 115, 220, 230, 240V single phase |
| Liquid temperature range | PVC type: 0 – 40˚C GFRPP type, PVDF type, SUS type: 0 – 60˚C |
| Viscous liquid | Please contact us for details. |
| Slurry liquid | Can not be handled. |
| Functions of the controller | Proportional control, Pulse control, Count-control |
