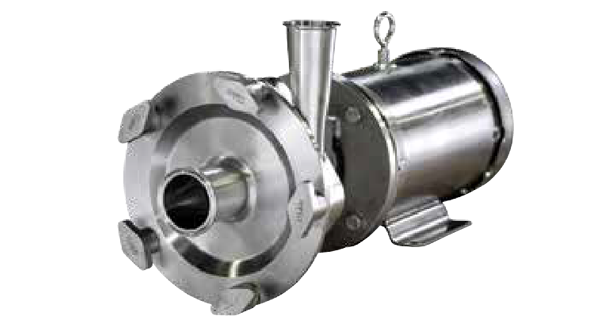

All L Series (LC, LD, LF, LME, LH) Sanitary Centrifugal Pumps are Highly Efficient
The L Series centrifugal line-up is designed to offer gentle and efficient product handling capable of viscosities up to 1200 cP. All models are fully CIP-able (clean-in-place). The LC, LD, LF and LH are also 3A certified.
Included in L Series are model series:
- LC featuring a single seal
- LD featuring double seal
- LF featuring front loading seal
- LME featuring front loading seal
- LH featuring high pressure handling
With their heavy wall cast and machined 316L stainless steel construction, 304 stainless steel adapters for corrosion resistance, and a self-aligning shaft to extend seal life, the L Series pumps are built to last.
The balanced impellers and tight manufacturing tolerances add to the efficiency of this durable line of pumps.
Standard Features
- 316L Stainless Steel Fluid End
- 304 Stainless Steel Adapters
- Balanced Impellers
- Cast and Machined Heavy Wall Construction
- Tri-Clamp Connections
Performance Overview
Models: 64
Max Inlet Pressure: 600 PSI / 41 BAR
Max Flow Rate: 1800 GPM / 409 mᵌ/hr
Max Viscosity: 1200 cP
Seal Specifications: 3 Seal Options
===========

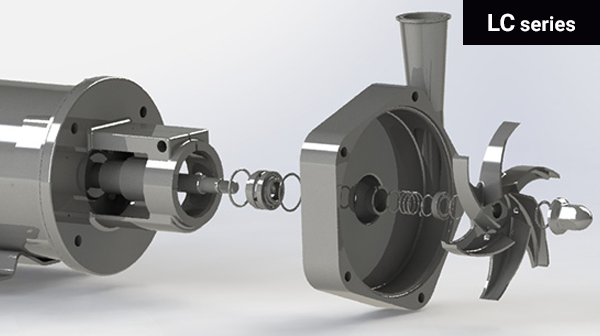

Choose the LC Series for high efficiency sanitary centrifugal pumps with single seal design.

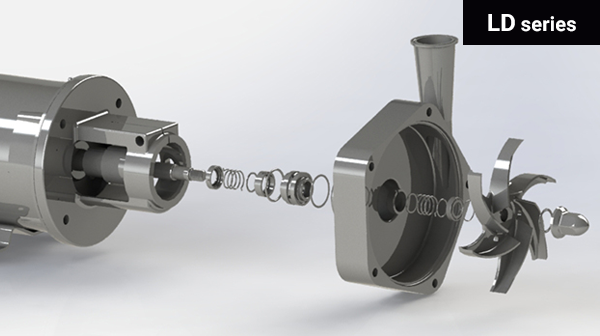

LD: Best choice when a double seal sanitary centrifugal pump is required. Buffer fluid protects the seal from high temperatures, abrasives and sticky products.

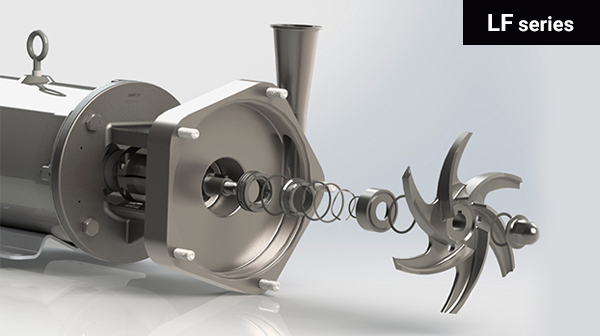

LF centrifugal pumps feature a front loading seal design. The LF can be easily converted to a double seal in the field and offers maintenance advantages.

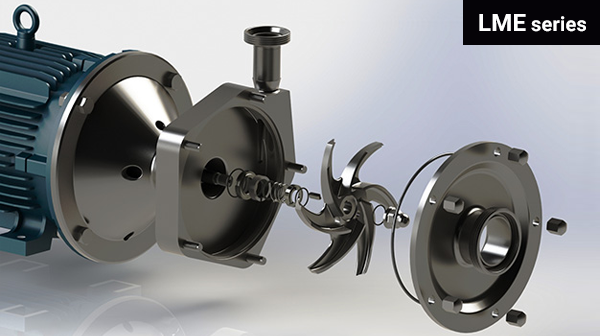

Metric sized pump with front a loading seal design. The LME is the leading technology in Asian and European markets with a large international installed base.

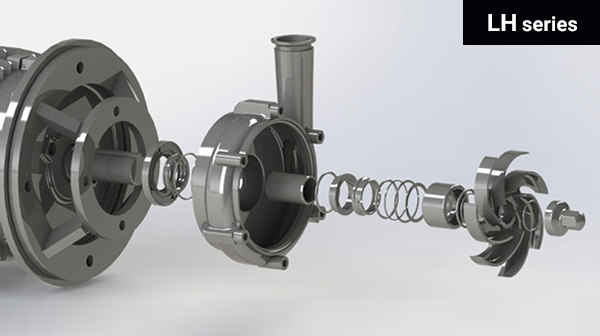

Designed for high pressure handling, the LH is close-coupled to JM frame motors to eliminate alignment issues and minimize space requirements.
