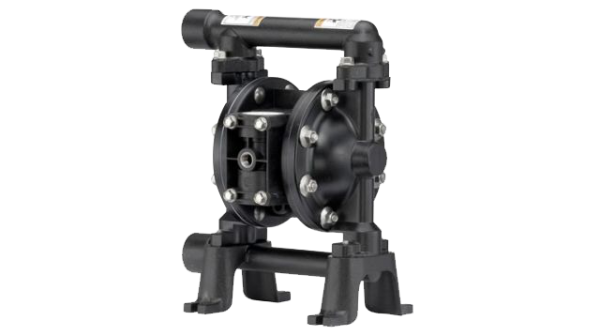

3/4” Metallic Diaphragm Pump

Mô tả

Overview

Part of our Compact Series of pumps our 3/4” metallic pumps feature big performance in a small package. They achieve flow rates up to 14.8 GPM (56 LPM) and offer a wide range of material and porting configurations.

Available with Long-life PTFE diaphragms.

Features

Designed to meet your OEM application needs.

Install directly onto your 3/4″ application, saving you a fitting and a possible leak point.

Efficiency – Simul-Shift™ valve provides ultra-positive, reliable shift signal

Reliability – ARO’s patented ‘Unbalanced’ air valve ensures no-stall operation

Versatility – Compact design enables usage in limited space and other versatile locations

Environmentally Sound – Bolted construction for leak-free fluid handling

Serviceability – Easier service through modular design

Accessories

• 66073-1 Air Line Connection Kit: contains Piggyback Filter / Regulator, pipe nipple & 5’ section of hose
• 637438 Threaded Exhaust Kit
• 93110 Air Motor Muffler
• 76763 Wall Mount Bracket
• 637428 Air Section Service Kit
• 637427-XX Fluid Section Service Kit

Pump Casing Material

• Aluminum

Diaphragm Materials

• LongLife PTFE
• Santoprene
• Hytrel
• PTFE

Specifications

• Ratio: 1:1
• Maximum Flow: 13.6-g.p.m. (51.5-l.p.m.)
• Displacement per cycle: 0.030-Gallons (0.11-Liters)
• Air Inlet:  (Female) 1/4 – 18 P.T.F. SAE Short
• Fluid Inlet/Outlet:
  3/4 – 14 N.P.T.F.-2
  Rp 3/4 (3/4 -14 BSP, parallel)
• Max. operating pressure: 100-psi (6.9-bar)
• Suspended solids max. dia.: 3/32” (2.4-mm)
• Weight:  lbs (kg)
  PX07R  8.74 (3.96)
  PX07A  11.0 (4.99)
• Maximum dry suction lift:  ft (m) 15 (4.5)
• Sound Level: 70 PSI    60 Cycles/Min    75 db(A)
