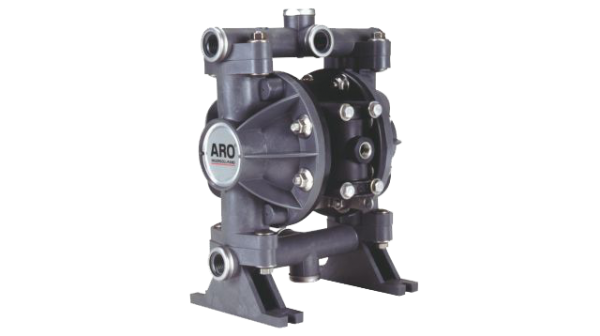

1/2” Classic Style Non-Metallic Diaphragm Pump

Mô tả

Overview

Part of our Compact Series of pumps, our 1/2” classic pumps feature big performance in a small package. With flow rates up to 13 GPM (49.2 LPM) and a wide range of material and porting configurations.

Features

• ARO has the world’s best selling 1/2″ ported diaphragm pump.
• Designed to meet your OEM application needs.
• Efficiency – Motor design delivers optimum air efficiency
• Reliability – ARO’s patented ‘Unbalanced’ air valve ensures no-stall operation
• Versatility – Center, End, Dual Inlet / Outlet, and Swivel Top manifold configurations to fit your specific application
• Evironmentally Sound – Bolted construction for leak-free fluid handling
• Serviceability – Ease of service through modular design

Accessories

• 76763 Wall Mount Bracket
• 67165-X Cycle Actuation Kit
• P29122-600 Piggyback Filter-Regulator
• 637141 Air Section Service Kit
• 637140-XX Fluid Section Service Kit

Pump Casing Materials

• Polypropylene
• Groundable Acetal
• PVDF (Kynar)

Diaphragm Materials

• Neoprene
• Nitrile
• Viton
• PTFE / Santoprene
• E.P.R.
• Polyurethane
• Hytrel
• Santoprene

Specifications

• Ratio: 1:1
• Maximum Flow:
  (ball) 13 g.p.m. (49.2 l.p.m.)
  (duckbill) 10 g.p.m. (37.9 l.p.m.)
• Displacement per cycle:
  (ball) 0.04 g.p.m. (0.15 l.p.m.)
  (duckbill) 0.032 g.p.m. (0.12 l.p.m.)
• Air Inlet:  (Female) 1/4 – 18 N.P.T.F. – 1
• Fluid Inlet/Outlet: 1/2 – 14 N.P.T.F. – 1
• Max. operating pressure: 100 psi (6.9 bar)
• Suspended solids max. dia.:
  (ball) 3/32” (2.4-mm)
  (duckbill) fibers
• Weight:  lbs (kg)
  Polypropylene 7.2 (3.3)
  Groundable Acetal 8.8 (4.0)
  Kynar PVDF 9.5 (4.3)
  Maximum dry suction lift ft(m) : 15 (4.6)
  Sound Level: 70 PSI    60 Cycles/Min    71.1 db(A)
• Muffler: Integral, Included
