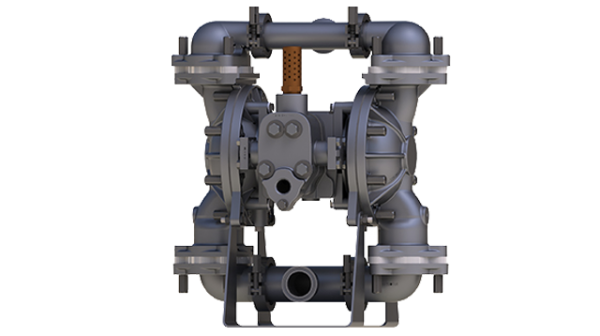

SANDPIPER’s SSB1 and DSB1 1″ AODD pumps have been the ideal choice for pharmaceutical, nutraceutical and personal care pumping applications for more than 30 years.
These robust ball valve pumps are constructed from polished 316 stainless steel and feature FDA-compliant nitrile diaphragms and check balls. The tri-clamp construction makes these pumps easily compatible with your sanitary system design.
PUMPS FOR SANITARY APPLICATIONS
The DSB1, a highly polished version of the SSB1, is available with an electronic leak detector, providing the ultimate in leak protection and clean pumping with the paired performance of AODD pump technology.
Known for durability and cleanliness, these 1″ FDA-compliant pumps are versatile and are regularly used in applications ranging from transfer of hot cooking oils to heparin production. These pumps are designed to be driven by compressed air or nitrogen.
DSB1 AND SSB1 FEATURES
- Materials of construction: All components are electropolished stainless steel
- Leak detection: Pair with electronic leak detection for additional peace of mind.
- Porting options: rotatable manifolds; top or bottom discharge available
SPECIFICATIONS
| Port Size | 1½” Tri-Clamp |
| Capacity | 0 to 54 gpm (204 lpm) |
| Air Distribution Valve | No-lube, no-stall design |
| Solids-Handling | Up to ¼” (6 mm) |
| Heads Up To | 125 psi or 289 ft. of water (8.6 bar or 88 meters) |
| Displacement/Stroke | .09 gallons (.34 liters) |
| Max Operating Pressure | 100 psi (7 bar) |
| Shipping Weight Stainless Steel Grade 5 Dairy Finish Stainless Steel |
60 lbs (27 kg) 62 lbs (28 kg) |
