Electronic Interface Pump

Mô tả

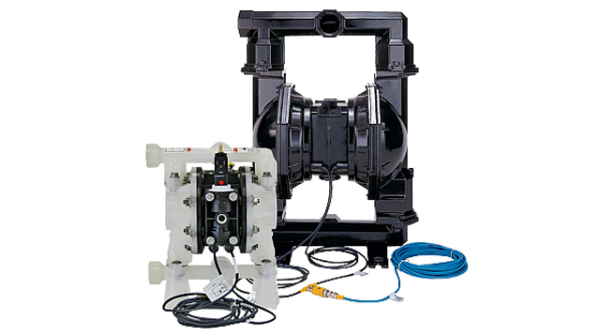

The ARO Electronic Interface Pump is an air-operated diaphragm pump that provide accurate, electronically controlled dosing. Paired with the ARO Controller, ARO Electronic Interface Diaphragm pumps assure consistent flow rates and pinpoint control for a myriad of fluids and applications, from chemical treatment to commercial laundry.

Overview

Hazadous Duty Ready;

• Operate the pump in the following hazardous locations:
  NEC / CEC: Class I&II, Div 1&2, Group A-D
  ATEX: Zone 1&2, 21&22
• Wire the provided sensors and barrier devices per your local code requirements
• Install controller and barrier devices in a suitable hazardous enclosure or outside the hazardous area
• Built-in solenoid control seamlessly integrates with other electronic components
• Internal cycle counter and end-of-stroke pressure signals track end-of-stroke feedback and pump data
• Leak detection option detects diaphragm failure to help reduce costly production downtime
• Factory-installed cycle counter and leak detection kits
• Preassembled components for hassle-free and error-proof installation
• Lube-free design and fewer parts for easy maintenance and repairs
• Multiple sizes accommodate virtually any process, fluid or viscosity
• Five-year warranty

Features:

• Closed loop system achieves dispensing repeatability within +/- 1%
• Safe control and monitoring via remote operation
• Multi-pump control for accurate two part batching processes
• Controller accepts leak detection, liquid level sensing and proportional control
• Remote triggers and alerts send operating data, can perform auto shut-down, and keep you up-to-date on maintenance needs
• Seamless integration between the ARO® Controller and EXP Series Electronic Interface pumps

Markets & Applications:

• The ARO controller and electronic interface pumps are ideal for a wide array of applications such as batching, and container and tank fill in numerous markets.

The best HTML Articles are availalbe on our website in many categories: HTML, CSS, jQuery and free online tools. Browse our articles to learn web content composing!

Specifications

Options

Voltage

• 120VAC, 110VAC and 60VDC
• 12VDC, 24VAC and 22VAC
• 240VAC, 220VAC and 120VDC
• 24VDC, 48VAC and 44VAC

ATEX Compliance

• To meet ATEX Zone 1 requirements, three solenoid options are available: 12VDC, 24VDC and 220VAC.

No-Coil Solenoid

• For customers who prefer to use our solenoid with their own coil.

Standard Valve Block

• Standard Electronic Control Diaphragm pump without solenoid control. Offers the option to add add leak detection and end-of-stroke cycle sensing.

Leak Detection Sensors

• Refractive infrared light sensors continuously monitor the air-side of the diaphragm and signal if fluid enters the air side of the diaphragm housing.

Cycle Sensors

• Optional cycle sensors provide closed contact output to monitor pump operation and provide end-of-stroke data on cycle and flow rates. They also help provide preventive maintenance reminders.
