Ampco – M Series

Mô tả

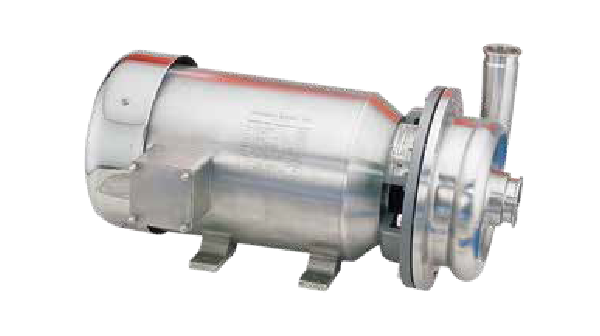

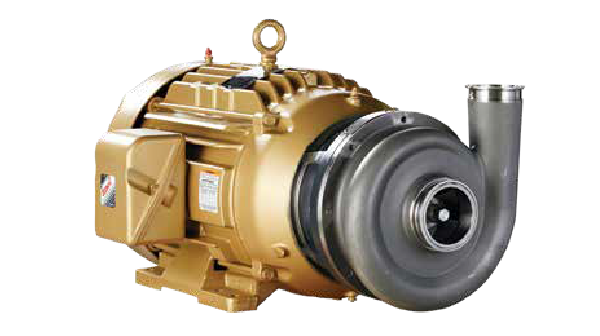

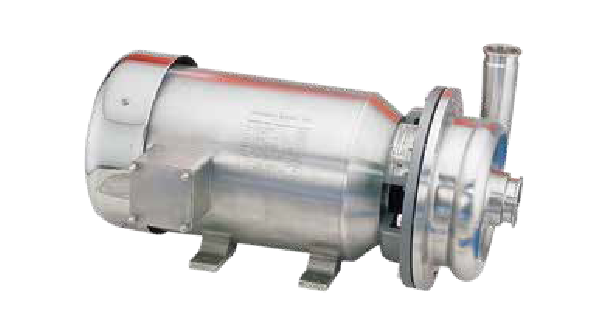

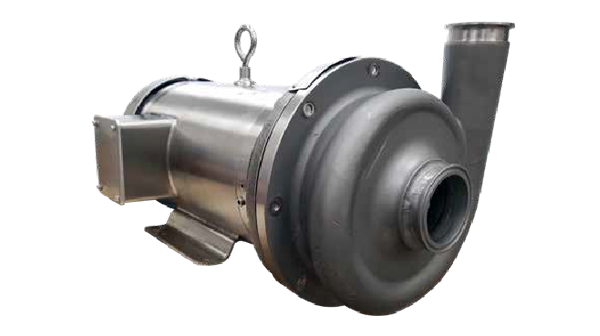

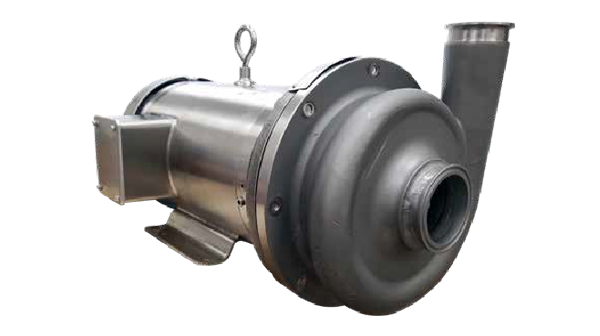

M Series Pumps are Heavy-Duty and Versatile Enough for Hot Oil

The M Series high-efficiency, heavy-duty centrifugal pump is used for sanitary and non-sanitary applications worldwide. This pump is perfectly suited for CIP, water, juices, dairy and – when modified – ideal for hot oil applications.

3A Certified for sanitary applications, the M Series provides several seals options and surface finishes for the utmost in application flexibility.

Seal options include: standard Type 8B2 external seal, and single or double internal seals offered in various materials. The M Series comes standard close-coupled to NEMA Standard JM motors and requires minimal NPSH (Net Positive Suction Head).

The M Series with its semi-shrouded open impeller design can efficiently pump hot waste oil with particulates at temperatures greater than 400° F/ 204° C.

Standard features:

• 3A Certified
• Seal Options: Standard Type 8B2 external seal Single or double internal Various seal materials

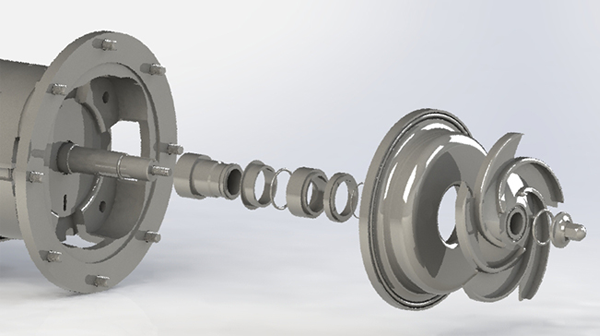

• Efficient, semi-open impeller design
• Standard 32 RA (150 grit) surface finish with optional surface finishes from unpolished to 12 RA (320 grit)
• Minimum NPSH requirements
• Temperatures to 400˚ F /204˚ C
• Close coupled to NEMA Standard JM motors
• One week delivery

Applications:

• CIP
• Water
• Orange Juice
• Milk
• Hot Oil (when modified)

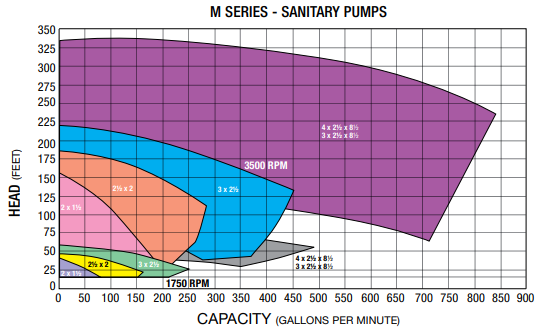

M Series Performance Overview
